HOME > Motion Control > Cartesian Robot

· Clean Type Belt & LM guide

Equipment Catagory	Cartesian Robot
Name of Product	QL
Name of series	QL 80
Link address	http://www.tpcpage.com/product/motion_list_view.asp?productNumber=434&Bcode=02&Mcode=01&Scode=15

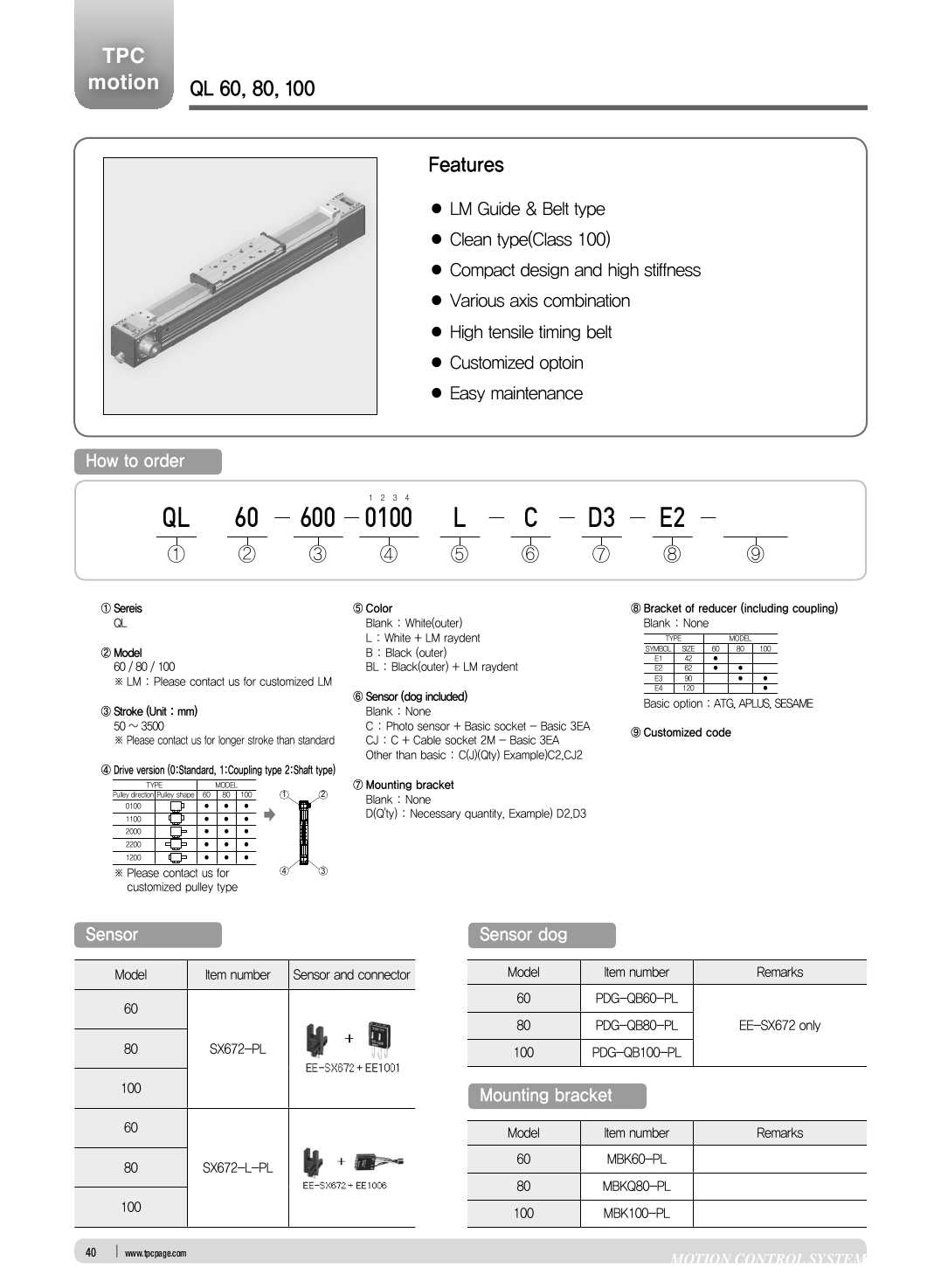

Features

- LM Guide & Belt type
- Clean type(Class 100)
- Compact design and high stiffness
- Various axis combination
- High tensile timing belt
- Customized optoin
- Easy maintenance

MODEL	MOTOR (w)	STROKE (mm)	GEAR RATIO	SPEED (mm/s)	MAX.PAYLOAD(kg)		2D	3D
MODEL	MOTOR (w)	STROKE (mm)	GEAR RATIO	SPEED (mm/s)	Horizontal (0.3G)	Vertical (0.5G)	2D	3D
QL80	400	50~3500	20	440	110	80
			10	880	70	60
			5	1760	25	20
	750		20	440	140	110
			10	880	80	70
			5	1760	30	25
QL80-LT	400		20	440	110	80
			10	880	70	60
			5	1760	25	20
	750		20	440	140	110
			10	880	80	70
			5	1760	30	25
QL80-RT	400		20	440	110	80
			10	880	70	60
			5	1760	25	20
	750		20	440	140	110
			10	880	80	70
			5	1760	30	25
QL80-LB	400		20	440	110	80
			10	880	70	60
			5	1760	25	20
	750		20	440	140	110
			10	880	80	70
			5	1760	30	25
QL80-RB	400		20	440	110	80
			10	880	70	60
			5	1760	25	20
	750		20	440	140	110
			10	880	80	70
			5	1760	30	25
QL80-LU	400		20	440	110	80
			10	880	70	60
			5	1760	25	20
	750		20	440	140	110
			10	880	80	70
			5	1760	30	25
QL80-RU	400		20	440	110	80
			10	880	70	60
			5	1760	25	20
	750		20	440	140	110
			10	880	80	70
			5	1760	30	25
