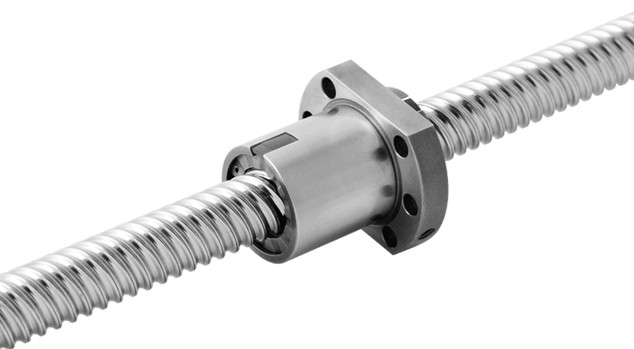

Ball Screw
Get a Quote

Ball Screw

High Reliability

TBI MOTION has very stringent quality control standards covering every production process. With proper lubrication and use,trouble-free operation for an extended period of time is possible.

Smooth Operation

The high efficiency of ball screws is vastly superior to conventional screws. The torque required is less than 30%. Linear motion can be easily changed from rotary motion.

High Rigidity and Preload

When axial play is minimized in conventional screw-nut assemblies, the actuating torque becomes excessive and the operation is not smooth. The axial play in TBI MOTION precision ball screws may be reduced to zero by preloading and a light smooth operation is still possible. Therefore, both low torque and high rigidity can be obtained simultaneously.TBI MOTION ball screws have gothic arch groove profiles (Fig. 1.2) which allow these conditions to be achieved.

Fig. 1.2 Groove Shape of TBI MOTION Precision Ball Screw

Circulation Method

Ball return tube method.(V、E、S、Y type);Ball Deflector method.(I、U、M、K type)

High Durability

Rigidly selected materials, intensive heat treating and processing techniques, backed by years of experience,have resulted in the most durable ball screws manufactured.

Material and Heat Treatment

ITEM MATERIAL HEAT TREATMENT HARDNESS
SCREW SCM450 Induction Heating
HARDENING
HRC58°~62°
S55C
CF53
NUT SCM415 CARBONIZING HARDENIN HRC58°~62°
STELL BALL SUJ2 HRC60°UP

Heat Treatment
