Cartesian Robot

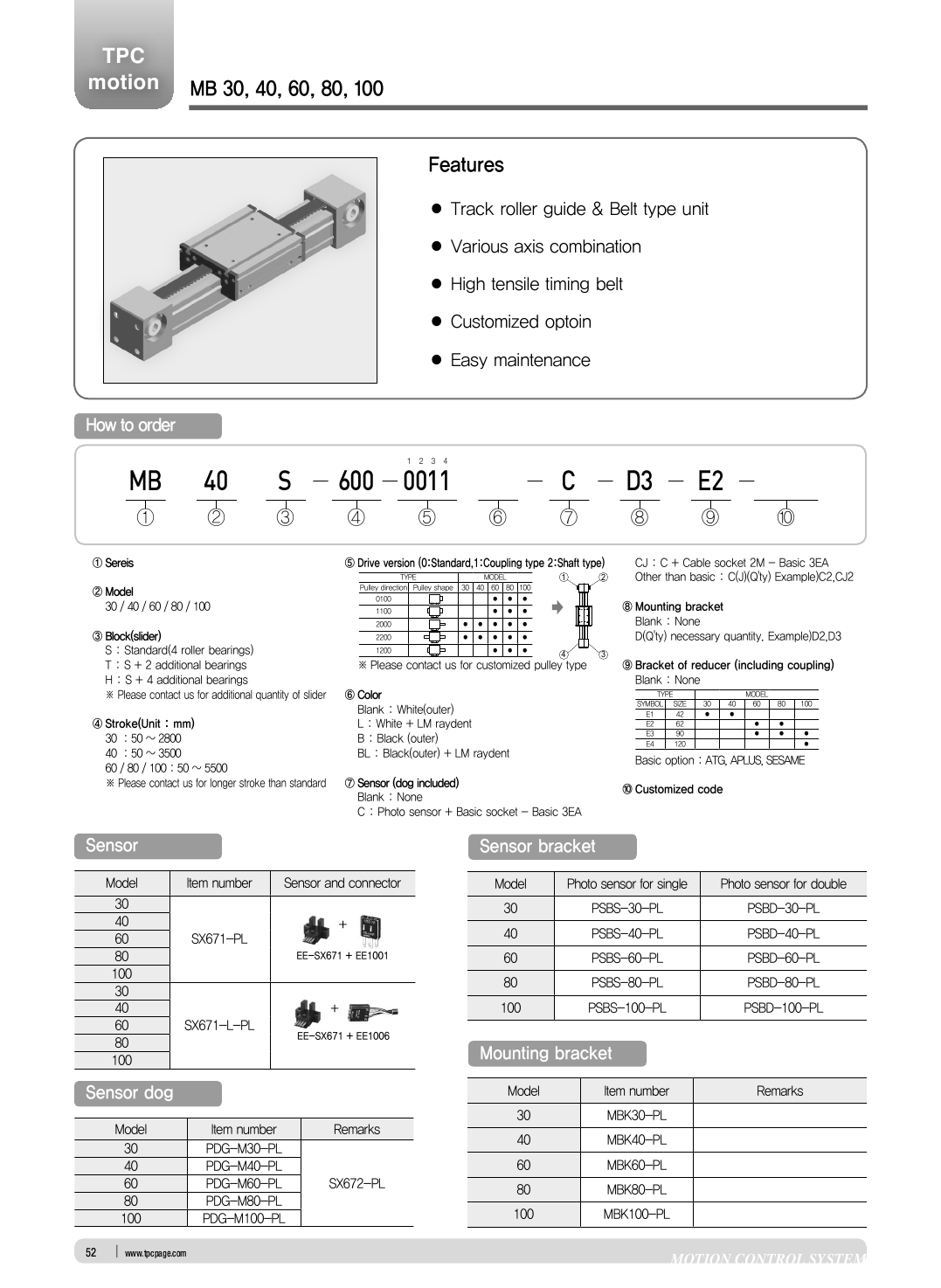

Name of Product MB
Name of series MB 80
Link address http://www.tpcpage.com/product/motion_list_view.asp?productNumber=424&Bcode=02&Mcode=01&Scode=08

Features

  • - Track roller guide & Belt type unit
  • - Various axis combination
  • - High tensile timing belt
  • - Customized optoin
  • - Easy maintenance
  • PDFÆÄÀÏ´Ù¿î
  • µ¿¿µ»óÆÄÀϺ¸±â
MODEL MOTOR
(w)
STROKE
(mm)
GEAR
RATIO
SPEED
(mm/s)
MAX.PAYLOAD(kg) 2D 3D
Horizontal
(0.3G)
Vertical
(0.5G)
MB80 400 50~5500 20 480 50 40
10 960 40 30
5 1920 18 15
750 20 480 50 40
10 960 40 30
5 1920 30 25
.
