Equipment
Catagory
Cartesian Robot

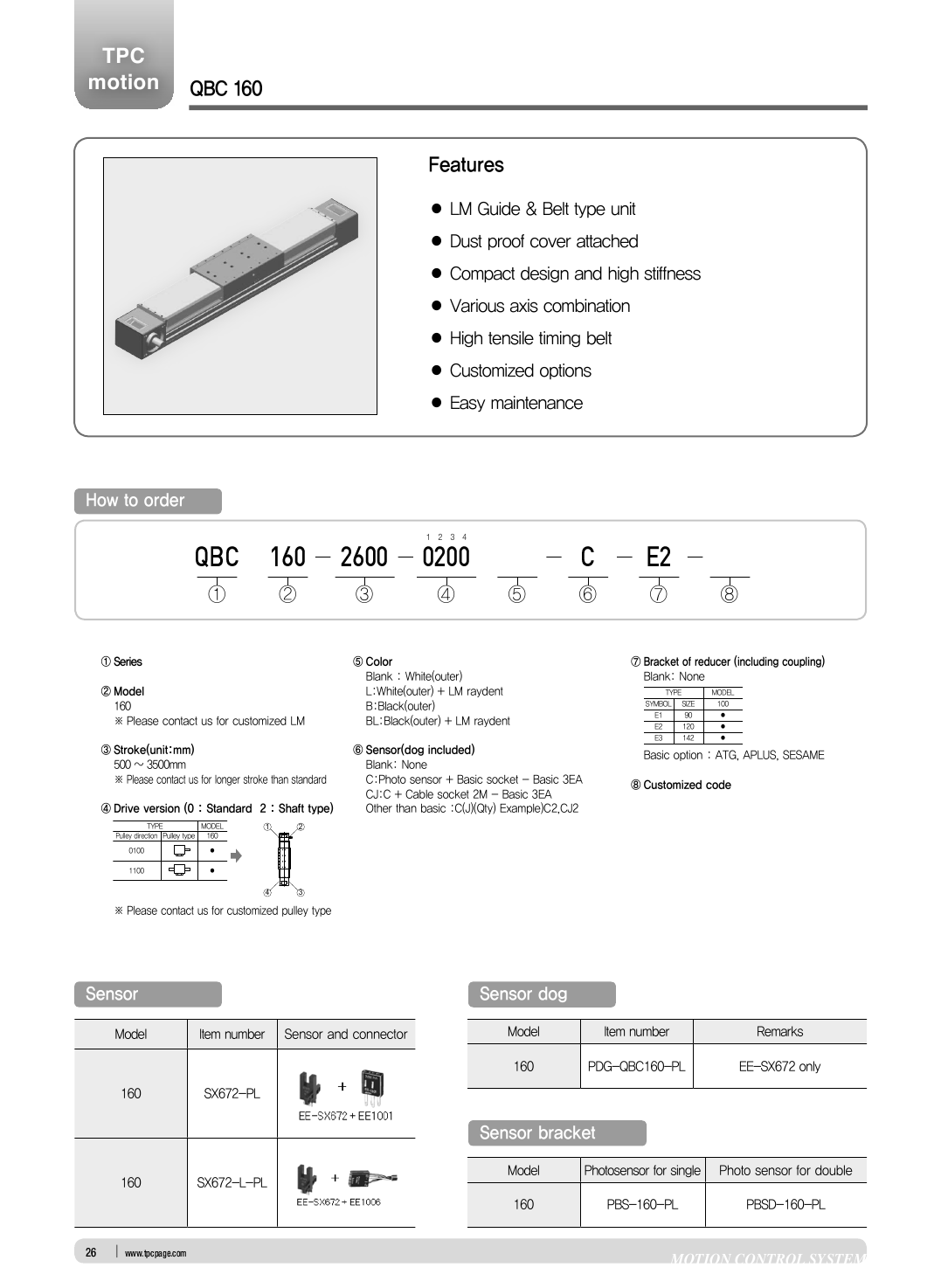

Name of Product QBC
Name of series QBC 160
Link address http://www.tpcpage.com/product/motion_list_view.asp?productNumber=391&Bcode=02&Mcode=01&Scode=05

Features

  • - LM Guide & Belt type unit
  • - Dust proof cover attached
  • - Compact design and high stiffness
  • - Various axis combination
  • - High tensile timing belt
  • - Customized options
  • - Easy maintenance
  • PDFÆÄÀÏ´Ù¿î
  • µ¿¿µ»óÆÄÀϺ¸±â
MODEL MOTOR
(Kw)
STROKE
(mm)
GEAR
RATIO
SPEED
(mm/s)
MAX.PAYLOAD(kg) 2D 3D
Horizontal
(0.3G)
Vertical
(0.5G)
QBC160 1 500~3500 20 520 300 270
10 1040 180 140
5 2000 80 50
1.5 20 520 300 270
10 1040 180 140
5 2000 80 50
